HOSE REEL COMBO
Amplla

HOSE REEL COMBO

A revolutionary combination of hydrant and portable fire extinguisher

HOSE REEL COMBO
REVOLUTIONARY HYDRANT

SURPRISING SOLUTION

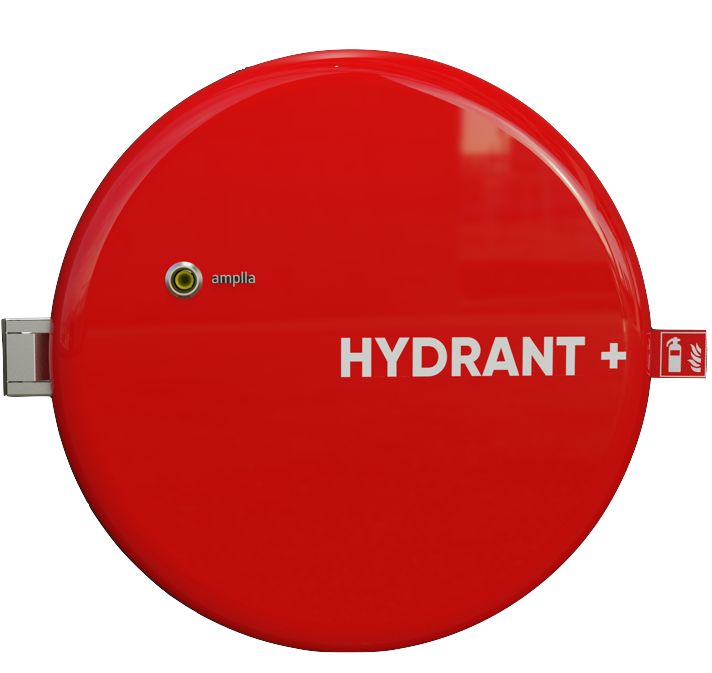

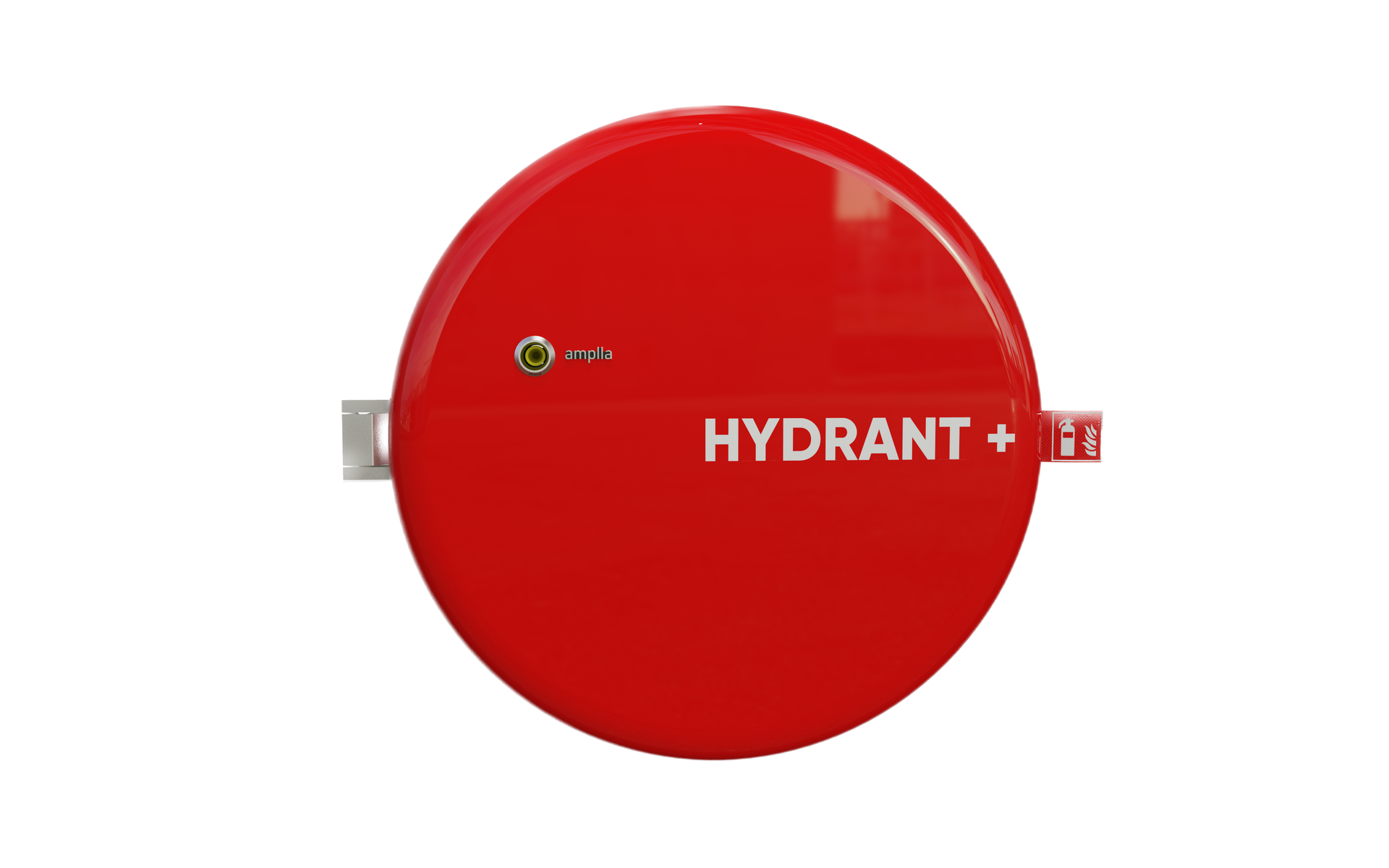

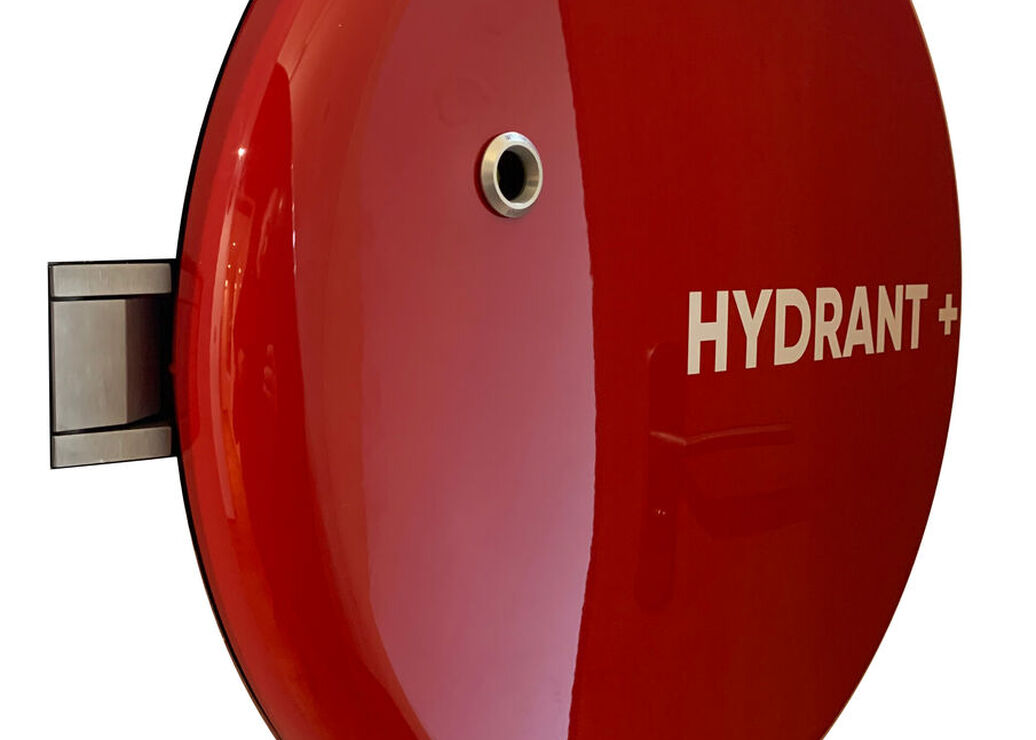

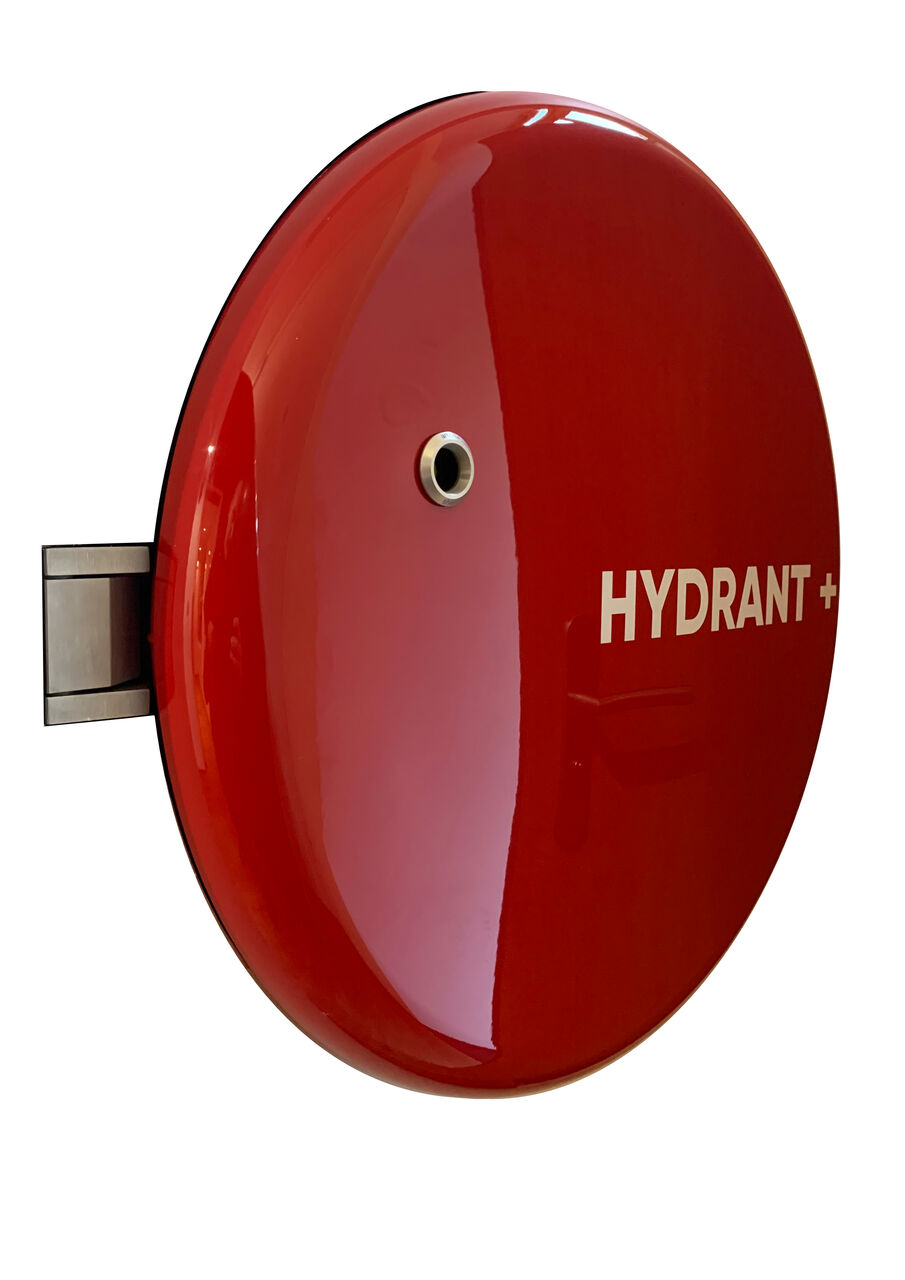

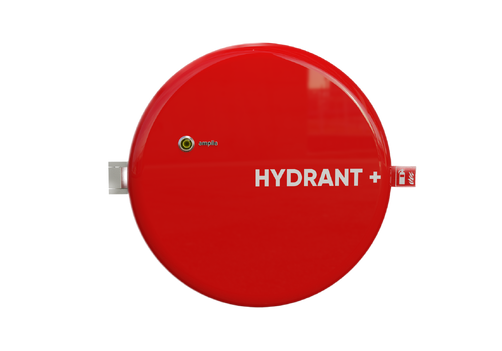

AMPLLA HOSE REEL COMBO represents a unique concept that combines two devices in one. It is a fully functional hydrant, consisting of a hose winch with a hose nozzle and our SHIELD fire extinguisher. All of that is wrapped in a unique design unit.

COMPLEX PROTECTION

REVOLUTIONARY SOLUTION 2 IN 1

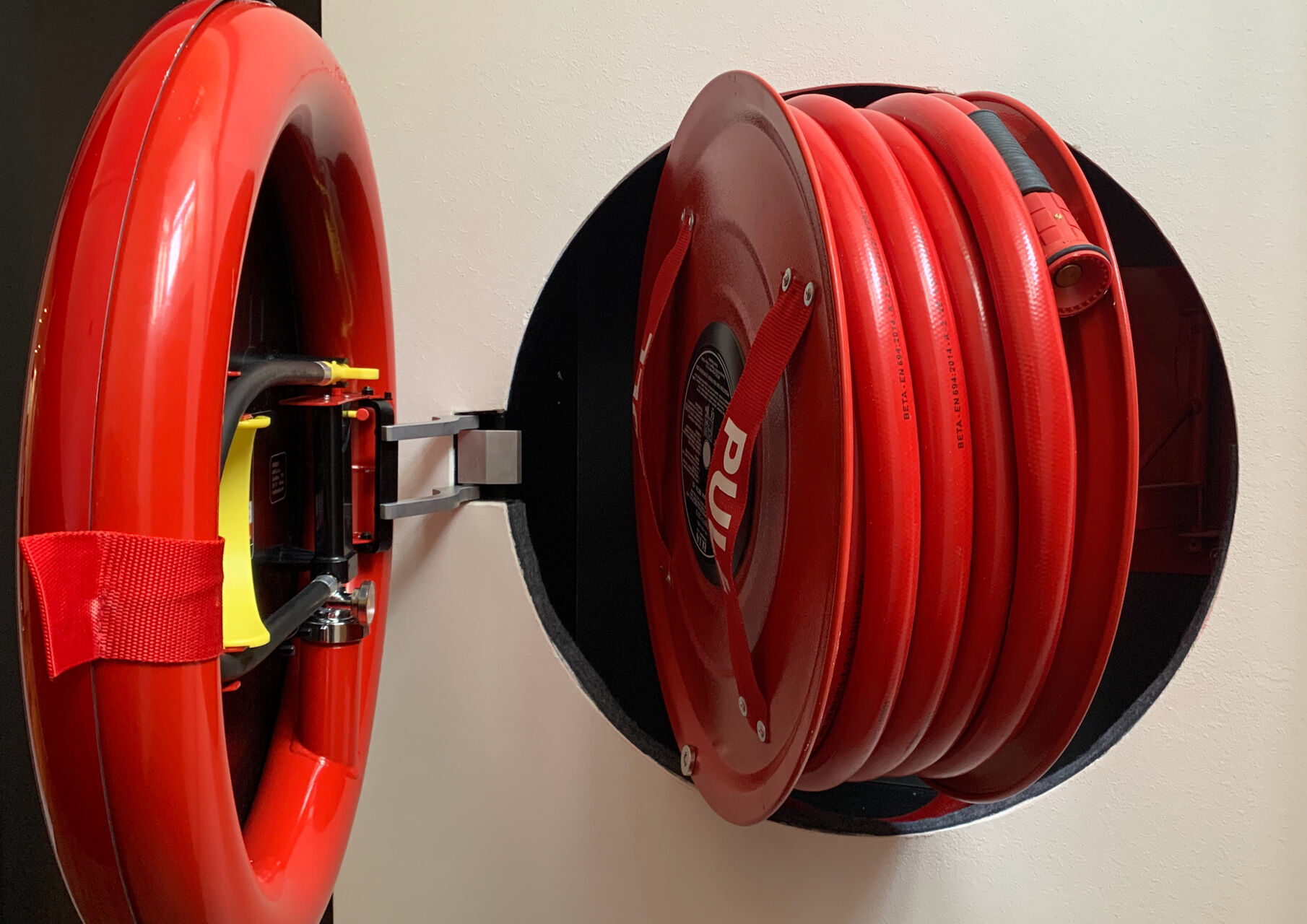

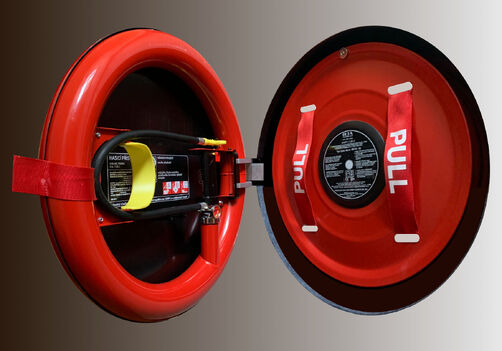

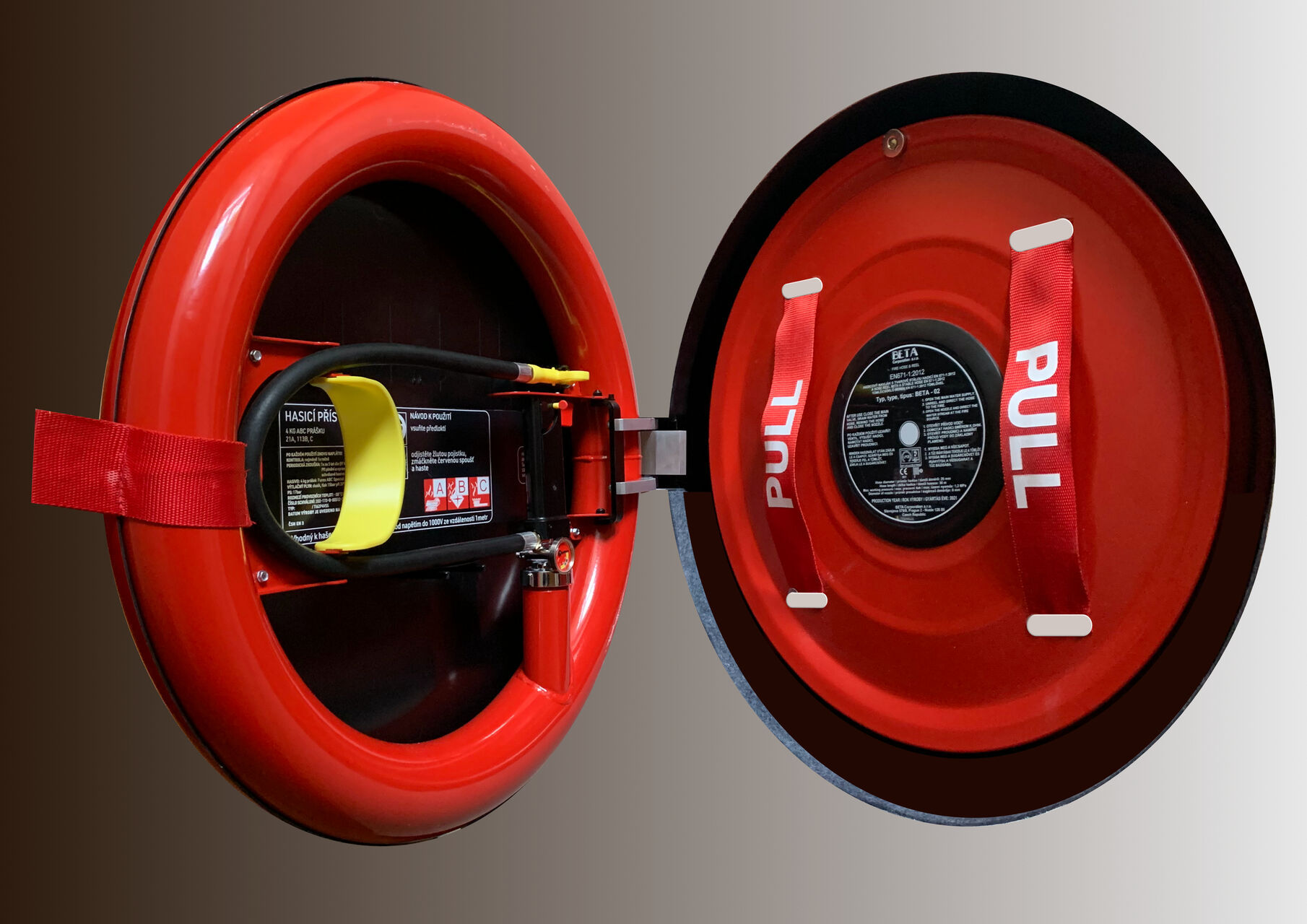

The hose reel is usually placed in a wall cabinet, together with a fire hose. It is used for a fast intervention against more extensive fires, especially until the arrival of the given fire rescue unit to the fire location. It forms a part of the basic fire protection equipment of buildings. Our solution goes much further. Instead of a mere cover, we have covered the winch and the hose by another portable fire extinguisher of the SHIELD line. Its attractive design and combined fire extinguishing ability represent the main attributes of Amplla HOSE REEL COMBO.




  •


Technical specification

SHIELD
Type:
P21 - TI62P4VSH
P34 - TI62P6VSH
Fire rating:
P21 - 21A, 113B, C
P34 - 34A, 183B, C
Totall weight:
P21 - ~ 11.4 kg
P34 - ~ 13.2 kg
Use:
solid materials, liquids, gases, live electrical equipment up to 1kV at the distance of 1m
Overall dimensions:
diameter 630 +/- 2 mm
width 91 +/- 2 mm
Body volume:
7.2 l
Allowable temperature:
from -30°C to +60°C
External treatment:
powder painting red RAL 3000
Extinguishing agent:
powder - Furex ABC Spezial
P21 - 4 kg of powder
P34 - 6 kg of powder
Propellant:
nitrogen - N2
Discharge time:
P21 - 14.1 +/- 2.1 s
P34 - 19.6 +/- 2.9 s
Body material:
alloy steel - P265GH
Valve:
chrome-plated brass - M45x1,5
Trigger:
ABS - red
Pressure:
working 15 bar
max. allowable 17,0 bar
test 25 bar
Certified accoring to:
EN 3-7:2004+A1:2007
EN 3-8:2006/AC:2007
EN 3-10:2010
Certificate:
1015-PED-B-00531-22
1015-PED-B-01279-22
HOSE REEL
Type:
WBC7128ZH3032
Product type:
BETA-02
Specification:
spray DN25
Hose length:
30 m
Hose specification:
stable
Hose diameter:
25 mm
Reel size:
580x600x210 mm
Nozzle diameter:
8 mm
Closet size:
min. 700x700x260 mm

Allowable inlet pressure:
2-12 bar
Certified according to:
EN 671-1:2012
Recommended inlet pressure:
4 bar
Certificate:
1038Xa/02





Downloads

If you are interested in models in DXF format, 3DS, send us a message to info@amplla.com
